1. Why MOSFET Testing Matters

So, your circuit's gone haywire, and you suspect the MOSFET might be the culprit? Don't worry, we've all been there. MOSFETs are like the unsung heroes (or sometimes villains) of electronics, switching currents and voltages with impressive speed. But like any component, they can fail. And when they do, it's time to play detective. Knowing how to test if a MOSFET is bad can save you a lot of time and frustration — not to mention money on unnecessary replacements.

Think of it like this: your MOSFET is the bouncer at a VIP club (the circuit). It's supposed to let the right electrons in and keep the wrong ones out. If it's letting everyone in (shorted), or no one in (open), or just acting plain weird, you've got a problem. Testing helps you diagnose whether the bouncer is simply having a bad day, or if it's time to hire a new one.

Before diving into the specifics, remember safety first! Always disconnect the power supply before poking around with your multimeter. We're dealing with electricity here, and nobody wants a shocking experience (pun intended!). Plus, it gives the MOSFET a fair chance at an accurate reading without being influenced by other parts of the active circuit.

So buckle up, grab your multimeter, and let's get started on figuring out if your MOSFET is ready for retirement, or if it just needs a little pep talk.

Gathering Your Tools and Knowledge

2. What You'll Need for the MOSFET Checkup

Before we can perform our MOSFET autopsy (figuratively speaking, of course), we need to assemble our tools. The most crucial piece of equipment is a multimeter — preferably a digital one, as they tend to be more accurate and easier to read. Think of it as your stethoscope for electronic components. Make sure it's set to the resistance (Ohms) testing mode. That little horseshoe symbol () is your friend here.

Next, a little datasheet knowledge goes a long way. Every MOSFET has a datasheet provided by the manufacturer, outlining its specifications and characteristics. Knowing the pinout (which pin is the gate, drain, and source) is absolutely essential. You can usually find these datasheets with a quick Google search using the MOSFET's part number. Consider it the MOSFET's medical history; without it, you're just guessing.

Optionally, you might want to have a current-limited power supply if you want to do a more active test, but that's more advanced and not necessary for basic fault-finding. For this guide, we'll stick to resistance measurements, which are sufficient for identifying the most common failures.

Lastly, having a clear workspace and good lighting is important. Fumbling around in the dark is a recipe for mistakes (and potentially damaging your equipment or yourself). A well-lit, organized area helps you stay focused and ensures you don't accidentally short something out with a stray wire. So, declutter your bench and let's get ready!

The Diode Test

3. Using Your Multimeter for a Basic Assessment

The diode test is often the first port of call when troubleshooting a MOSFET. It's a quick and easy way to identify some of the most common failure modes, particularly short circuits. MOSFETs contain inherent parasitic diodes between the drain and source, so this test leverages that fact.

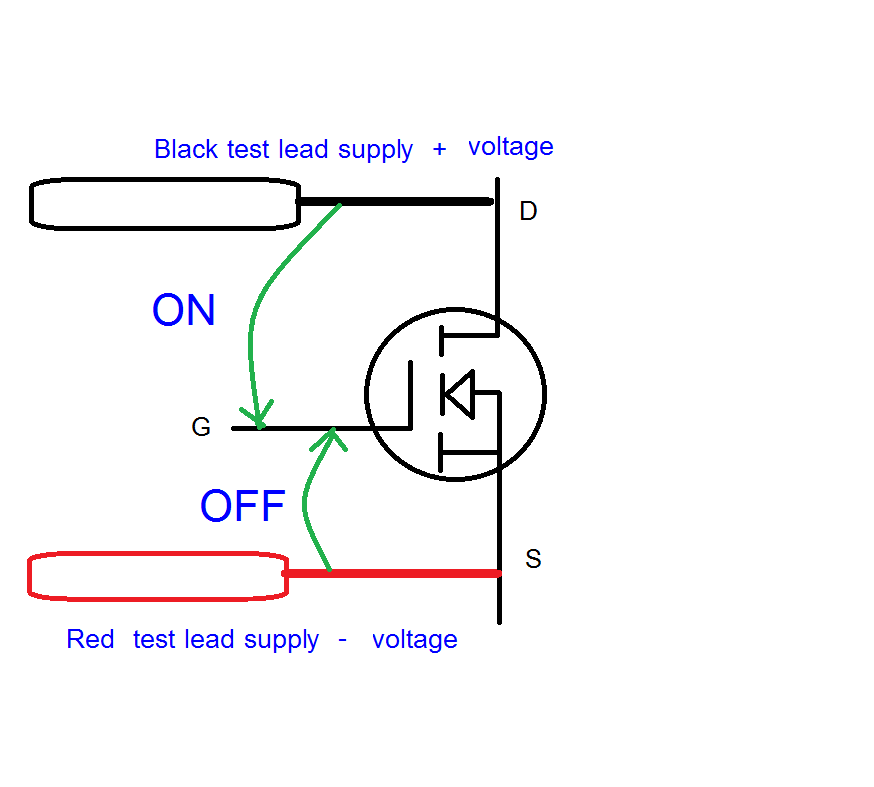

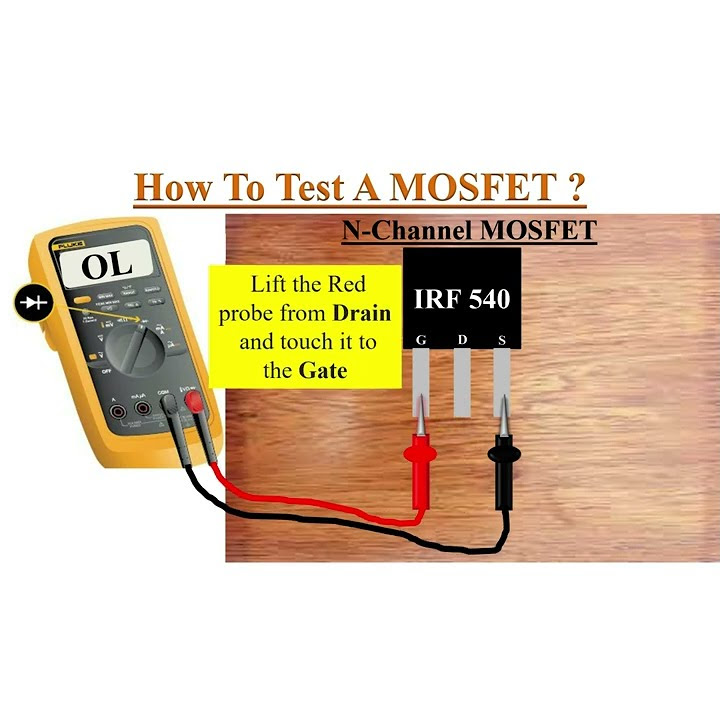

To perform the diode test, set your multimeter to diode test mode (usually indicated by a diode symbol). Place the red probe on the source and the black probe on the drain. You should see a voltage drop reading, typically between 0.4V and 0.7V. Now, reverse the probes (red on drain, black on source). You should see an open circuit or a very high resistance reading (OL on most multimeters). If you see a very low resistance or a short circuit in either direction, the MOSFET is likely fried.

It's important to note that this test primarily checks the drain-source diode. It doesn't tell you much about the gate functionality. However, if the drain-source diode is shorted, it's a pretty good indication that the MOSFET is toast. So, it's a good initial assessment to determine if more extensive testing is needed.

Remember, this test isn't foolproof. A MOSFET can still be faulty even if the diode test passes. But it's a valuable first step, especially when dealing with multiple suspect components. It helps you quickly eliminate the obviously bad ones and focus your attention on the trickier cases. So, don't skip this step; it could save you a lot of time and effort.

Resistance Measurements

4. Checking for Shorts and Opens with Ohms

If the diode test is inconclusive, resistance measurements are the next logical step. This involves checking the resistance between all three terminals (gate, drain, and source) to identify any unwanted shorts or opens. Remember to disconnect the MOSFET from the circuit before performing these tests; otherwise, you'll be measuring the resistance of the entire circuit, not just the MOSFET.

Set your multimeter to the resistance mode (Ohms, ). Now, measure the resistance between the gate and the source, the gate and the drain, and the drain and the source. In a healthy MOSFET, you should see a very high resistance (ideally, infinite or "OL" on your multimeter) between the gate and both the source and the drain. A low resistance indicates a shorted gate, which is a common failure mode.

The resistance between the drain and source should also be relatively high in both directions (with the exception noted in the diode test). A very low resistance suggests a shorted drain-source, while an extremely high resistance suggests an open circuit. These readings can vary depending on the type of MOSFET (N-channel or P-channel) and its specific characteristics, so consulting the datasheet is always a good idea.

Again, context matters. A reading of, say, 1 megaohm between the gate and source might be perfectly normal for one MOSFET but indicative of a problem for another. That's where the datasheet comes in handy. It's like having the cheat sheet for the exam — use it! If your readings deviate significantly from what's expected, it's a strong indication that the MOSFET is faulty.

Advanced Testing (Optional)

5. Going Beyond Basic Checks for Precise Evaluation

For a more comprehensive assessment, you can test the gate threshold voltage (Vgs(th)). This is the voltage required to turn the MOSFET on. However, this requires a more sophisticated setup involving a variable power supply, a resistor, and a voltmeter. It's beyond the scope of a simple "is it bad?" test, but I'll give you the rough idea.

You would apply a gradually increasing voltage between the gate and source, while monitoring the current flowing through the drain-source. The gate threshold voltage is the voltage at which the drain current starts to increase significantly. This value should be within the range specified in the datasheet.

This test is not typically needed for basic troubleshooting. It's more useful for characterizing MOSFETs or verifying their performance in specific applications. Unless you have the necessary equipment and expertise, it's best to stick to the simpler diode and resistance tests for determining if a MOSFET is bad.

Think of it like taking your car to a mechanic. The diode and resistance tests are like checking the tire pressure and oil level — quick and easy checks that can identify obvious problems. Testing the gate threshold voltage is like putting the car on a dynamometer to measure its horsepower — more complex and requires specialized equipment. Useful, but not always necessary.

FAQ

6. Common Concerns and Quick Solutions

Alright, let's address some frequently asked questions about testing MOSFETs. After all, troubleshooting can be a bit puzzling sometimes.

Q: My multimeter shows a short circuit in both directions between the drain and source. Is my MOSFET definitely bad?

A: Almost certainly. A short circuit between the drain and source is a strong indicator of a failed MOSFET. Time for a replacement!

Q: I'm getting different readings than what I expected. Could my multimeter be faulty?

A: It's possible. Multimeters can drift over time or have internal problems. Try testing a known good resistor to verify your multimeter's accuracy. If you suspect your multimeter is inaccurate, it's wise to consider using a different known-good multimeter.

Q: Can I test a MOSFET while it's still in the circuit?

A: It's generally not recommended. Other components in the circuit can affect the readings and lead to inaccurate results. It's best to desolder the MOSFET and test it in isolation for the most reliable assessment.
